    Black NBR FKM PTFE Silicone Rubber Washers / Hydraulic Vee Packing Seal

    Ask Lasest Price
    Brand Name : 3A Rubber
    Model Number : 3A6007
    Certification : ROHS/FCC/SGS
    Price : negotiation
    Payment Terms : T/T, L/C, Paypal, Western Union
    Supply Ability : 1000000sets per month
    Delivery Time : 10 working days after received your payment
    • Product Details
    • Company Profile

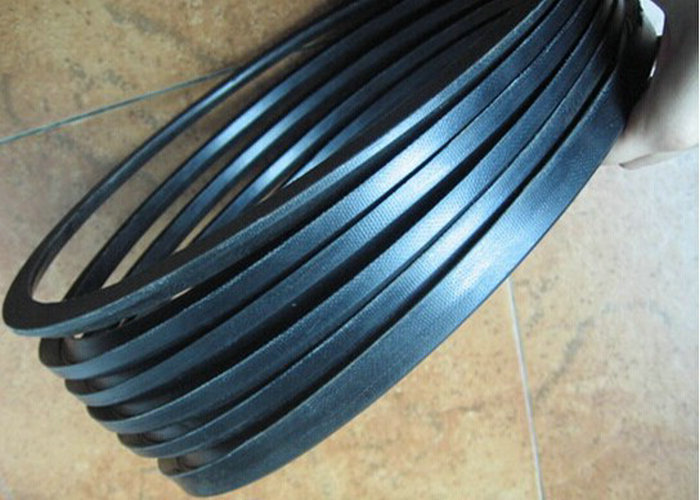

    Black NBR FKM PTFE Silicone Rubber Washers / Hydraulic Vee Packing Seal

    hydraulic Vee packing seal , V packing seal made with NBR FKM PTFE for industrial seal
    Product Description
    (Chevron Packing, V-Packings, Vee-packs) consist of three parts,which are seal ring, support ring and pressing ring. It has long working life and can operate under adverse mechanical situations.It is the seal used for piston rod of tank.Vee Packings are multiple-lip (chevron) seals comprised of a group of endless rings and are popular for sealing rods and pistons. They can be used for low or high pressure applications and with single or double acting cylinders.


    1) Pressure: 0-40 MPa;
    2)Temperature: -35~+200°C
    3) Speed: below 0.5 m/s;
    4) Medium: hydraulic oil,emulsion and water

    Special design

    POM/PTFE/PA, PTFE/UHMW-PE, POM/PTFE/PA


    Temperature(°C)


    PressureMax Gap ETemperature(°C)Speed(m/s)Medium
    160barE≤0.8mm-45~110≤0.5Mineral Oil
    250barE≤0.6mm-30~60HFC Water Glycol
    400barE≤0.4mm
    700barE≤0.2mm+5~60HFA 5/95 Water base fluid Water

    Medium: Minderal oil, HFC Water Glycol , HFA 5/95 Water base fluid Water


    Application


    Steel hydraulic

    Ceramic machine

    Heavy duty cylinders

    Presses

    Mills


    Advantage

    1. It has very good elasticity and be enlongated easily

    2. It has strong adaptive load against axial and radial viberation

    3. It is easily to be installed or uploaded
